Dock Levelers - Aven Automation

Dock Levelers

Introduction

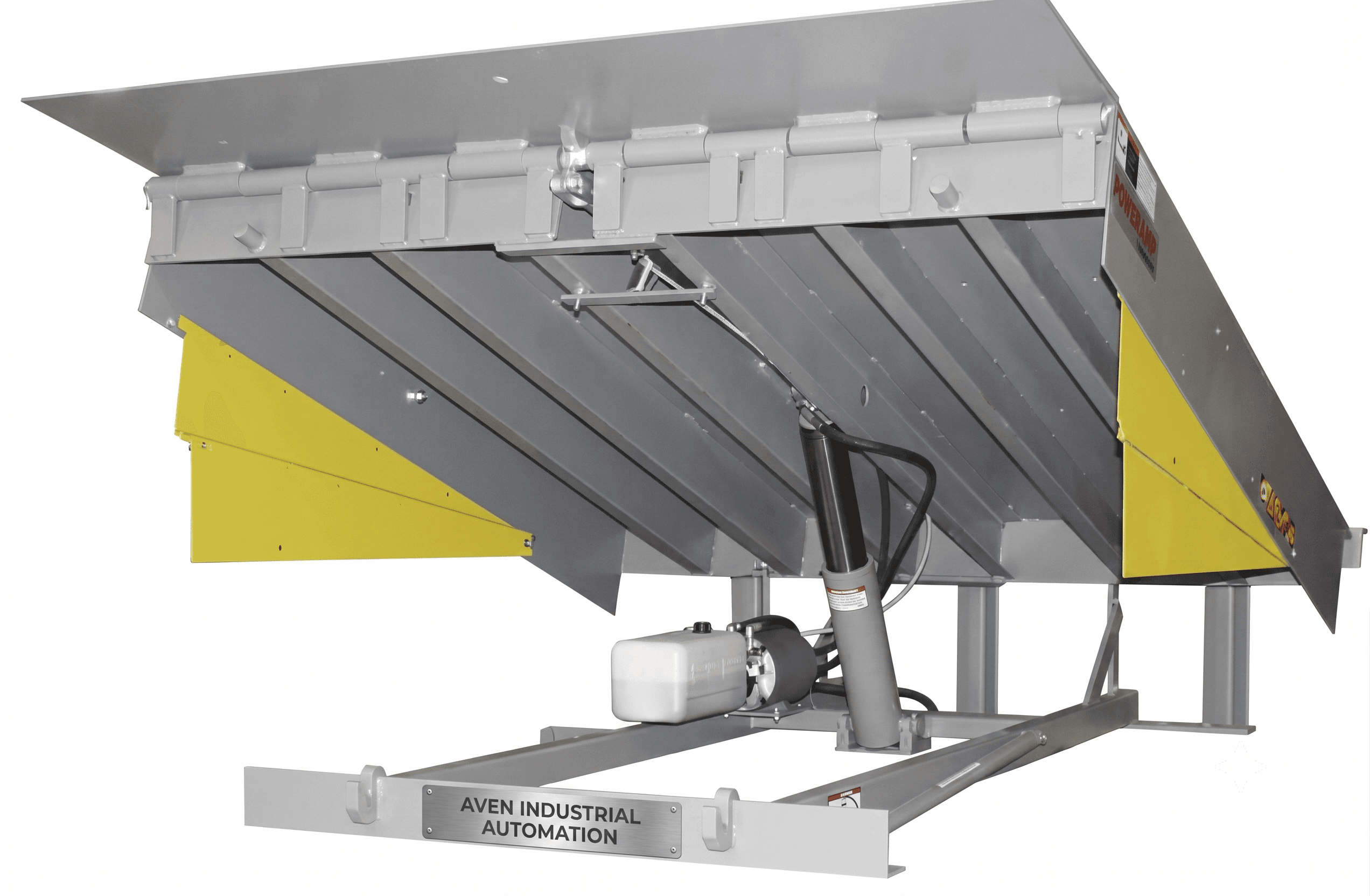

The Hydraulic Dock Leveler is a heavy-duty loading bay solution designed to bridge the height difference between loading docks and transport vehicles, enabling safe, fast, and efficient loading and unloading operations. Powered by a high-performance hydraulic system, it automatically positions the platform and lip for smooth material handling while reducing manual effort and improving productivity. Manufactured from heavy-duty structural steel with an anti-skid chequered platform, it offers exceptional durability, safety, and long service life. Integrated hydraulic safety valves, mechanical maintenance supports, and intelligent control systems ensure reliable operation even in demanding industrial environments. Suitable for warehouses, logistics centers, manufacturing plants, and distribution facilities, it is available in various load capacities and customizable sizes.

About Dock Levelers

Dock Levelers is a premium Dock Levelers solution designed to deliver reliable performance, enhanced safety and long-term durability for industrial, commercial and residential applications. It is engineered using high-quality components to ensure smooth operation even in demanding environments.

At Aven Automation, we provide complete supply, installation, testing and after-sales support for Dock Levelers. Every solution is selected according to the customer’s operational requirements to achieve maximum efficiency, security and convenience.

Our automation systems are widely used in factories, warehouses, logistics parks, commercial buildings, residential communities, hospitals, educational institutes and infrastructure projects across Pune, Maharashtra and India. We focus on delivering dependable automation solutions with professional installation and technical support.

Why Choose Dock Levelers?

Our Dock Levelers solutions are designed to deliver reliability, efficiency and long-term performance for industrial and commercial applications.

Enhanced Safety

Designed to improve operational safety with reliable automation.

High Performance

Smooth and efficient operation with consistent long-term performance.

Easy Operation

Simple to use with user-friendly controls and automation features.

Low Maintenance

Built using premium quality components for minimum maintenance.

Long Service Life

Engineered for durability even in demanding industrial environments.

Professional Installation

Complete installation and technical support by Aven Automation.

Frequently Asked Questions

Dock Levelers is an industrial automation solution designed to improve safety, security and operational efficiency.

Request Product Enquiry

Tell us about your requirement. Our Aven Automation experts will contact you with the best solution for your application.

Technical Specifications

Lip Size2000 × 400 mm (500 mm Optional)
Pit Size2050 × 2500 × 585 mm
Hinge PinBright Steel Bar
StructureFully Welded Heavy Duty Steel Frame
Net Weight825 kg
AccessoriesRubber Bumper,Wheel Chock,Vehicle Guide,Vehicle Restraint,Fixed Bollards,Traffic Light,Flashing Warning Lamp
Motor Power1.1 kW
Shut Height580 mm
Overall Size2000 × 2900 mm
Power Supply400V AC, 50 Hz, Three Phase
Product TypeHydraulic Dock Leveler
Travel Range+300 mm / -250 mm
Control PanelIP44 Standard (IP54 Optional)
Lip Cylinders1
Lip OperationHydraulic Automatic
Load Capacity6–25 Tons (Standard: 9 Tons)
Motor Current4.7A / 2.7A
Platform Size2000 × 2500 mm (Custom Sizes Available)
Platform Plate6 mm Anti-Skid Chequered Steel Plate
Pump Flow Rate2.5–20 LPM
Working Length2900 mm
Platform FinishBlue Epoxy Paint
Base Frame FinishBlack Epoxy Paint
Hydraulic Oil Tank7 Litres
Maximum Dock Slope
Maximum Point Load6 Tons
Platform Cylinders2
Platform OperationHydraulic Automatic
Hydraulic Power PackIndustrial Hydraulic Power Pack
Hydraulic Hose Length3 m
Safety Valve Pressure170 Bar
Platform Reinforcement3 mm Steel Stiffeners
Loading Platform Height1250–1400 mm
Maximum Hydraulic Pressure160 Bar
Uniformly Distributed Load9 Tons

Key Features

Designed for reliable Aven Industrial automationperformance.

Heavy-duty hydraulic dock leveler
Bridges height difference between dock and vehicle
Suitable for 6–25 ton loading capacity
Automatic hydraulic platform operation
Automatic hydraulic lip operation
Heavy-duty structural steel construction
Anti-skid chequered platform surface
Corrosion-resistant steel body
Hydraulic safety valve protection
Mechanical maintenance support system
Industrial-grade hydraulic power pack
Smooth and reliable operation
Custom platform sizes available
High load-bearing capacity
Compatible with sectional doors and rolling shutters
Supports loading bay accessories
Low maintenance design
Long service life
Suitable for continuous industrial operation
Improves warehouse productivity

Applications

Suitable for multiple industrial environments.

Warehouses

Distribution Centers

Logistics Parks

Manufacturing Plants

Industrial Loading Bays

Cold Storage Facilities

Food Processing Units

Pharmaceutical Industries

Automobile Manufacturing Plants

Retail Distribution Centers

Container Freight Stations

Export Warehouses

Courier & Parcel Hubs

E-commerce Fulfillment Centers

Ports & Cargo Terminals

Heavy Engineering Industries

Chemical Plants

Textile Industries

Airport Cargo Facilities

Industrial Storage Facilities
