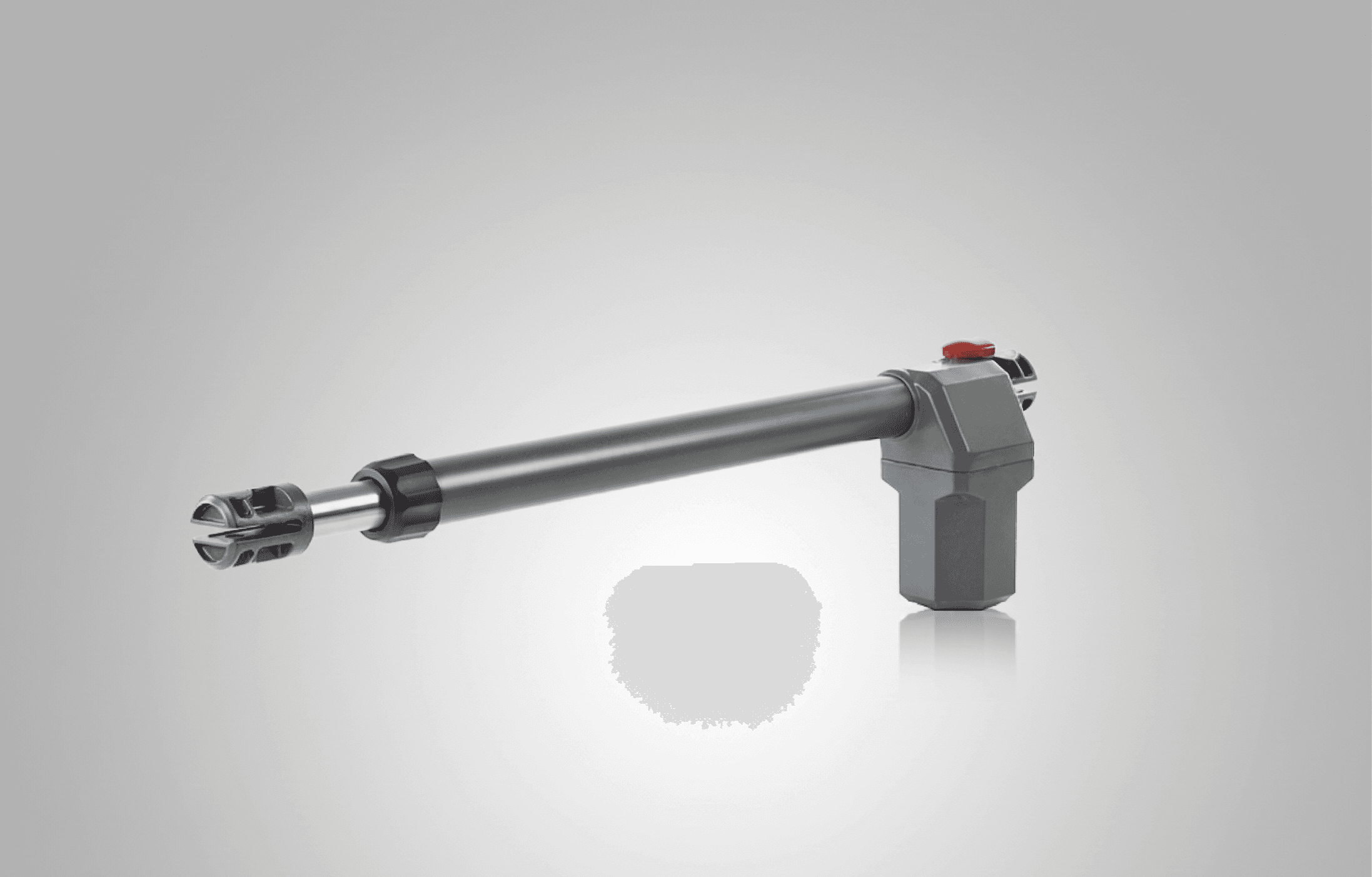

Automatic Swing Gate Motor
Introduction
The Automatic Linear Swing Gate Motor is a premium gate automation solution engineered for residential villas, apartment entrances, commercial properties, and institutional premises. Featuring a powerful linear actuator with a self-locking mechanism, it provides smooth, quiet, and secure opening and closing of swing gates. Constructed with a durable die-cast aluminum housing, steel brackets, and a high-tensile steel shaft, the motor delivers exceptional strength and long-term reliability. Its compact design makes installation convenient, even in locations with limited mounting space. Designed for low maintenance and dependable daily operation, the motor also supports an optional battery backup for uninterrupted performance during power outages.
Key Features
Designed for reliable Aven Industrial automationperformance.
Compact linear actuator design
Suitable for swing gates up to 4m and 4.5m
Supports gate weight up to 400 kg
Self-locking actuator for enhanced security
Heavy-duty die-cast aluminum housing
Steel tube and mounting brackets
High tensile steel shaft
Endless screw drive mechanism
Smooth and quiet operation
Maintenance-free performance
Easy installation in limited spaces
Optional battery backup support
Reliable long service life
CE Certified
Applications
Suitable for multiple industrial environments.
Residential Villas
Independent Houses
Apartment Complexes
Commercial Buildings
Office Entrances
Schools & Colleges
Hospitals
Hotels & Resorts
Farmhouses
Gated Communities
Institutional Campuses
Private Parking Areas
Request Product Enquiry
Tell us about your requirement. Our Aven Industrial automation experts will contact you with the best solution for your application.
Technical Specifications
| Operation | Automatic |
| Motor Type | Automatic Linear Swing Gate Motor |
| Screw Type | Endless Screw Mechanism |
| Application | Residential & Light Commercial Swing Gates |
| Drive Shaft | High Tensile Steel |
| Maintenance | Maintenance Free |
| Installation | Wall / Pillar Mounted |
| Actuator Type | Linear Self-Locking Actuator |
| Certification | CE Certified |
| Tube Material | Steel |
| Battery Backup | Optional |
| Bracket Material | Steel |
| Gate Leaf Length | Up to 4m / 4.5m (Model Dependent) |
| Housing Material | Die Cast Aluminum |
| Maximum Gate Weight | Up to 400 kg |
