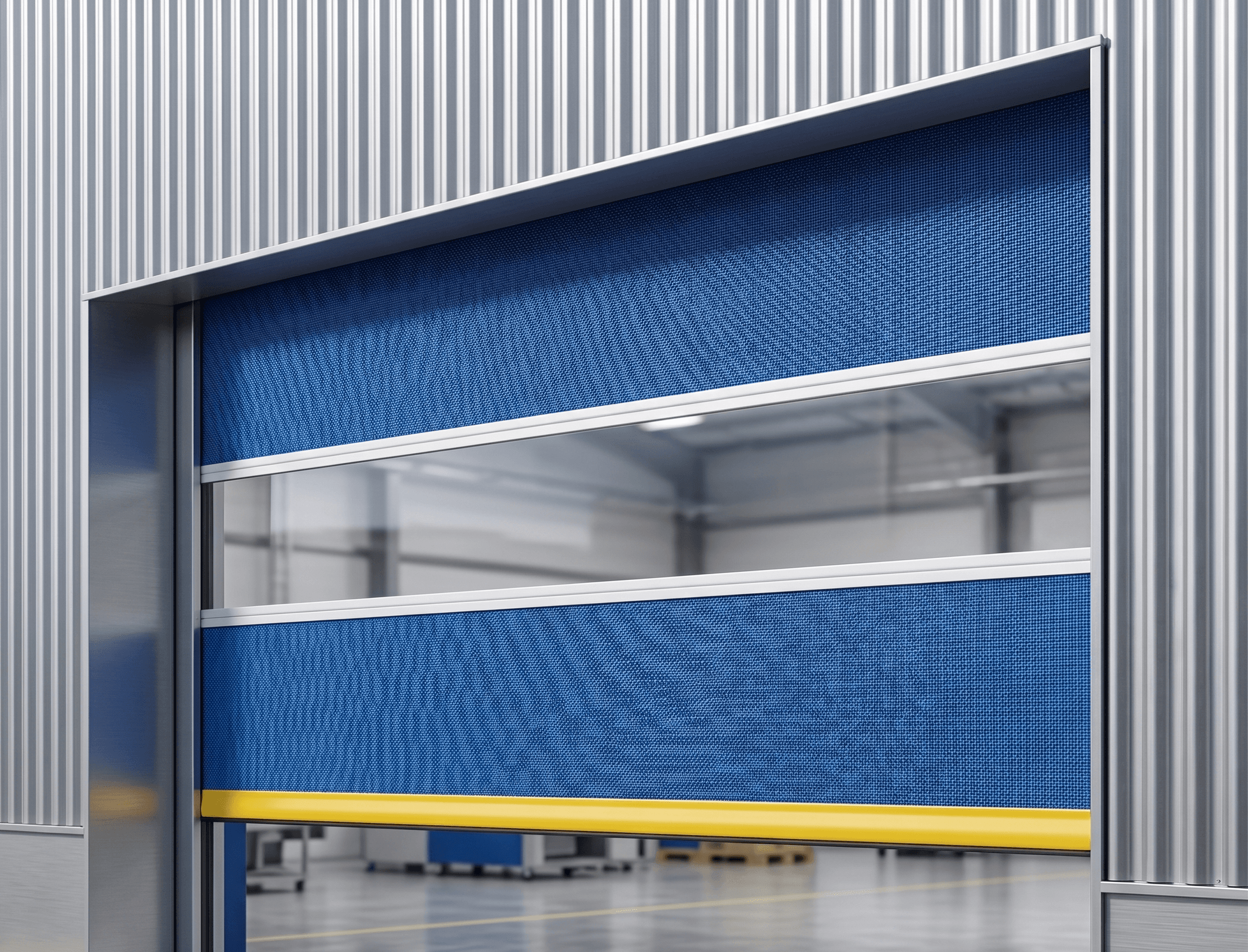

Roll Up Door
Introduction
About Roll Up Door
Roll Up Door is a premium High Speed Doors solution designed to deliver reliable performance, enhanced safety and long-term durability for industrial, commercial and residential applications. It is engineered using high-quality components to ensure smooth operation even in demanding environments.
At Aven Automation, we provide complete supply, installation, testing and after-sales support for Roll Up Door. Every solution is selected according to the customer’s operational requirements to achieve maximum efficiency, security and convenience.
Our automation systems are widely used in factories, warehouses, logistics parks, commercial buildings, residential communities, hospitals, educational institutes and infrastructure projects across Pune, Maharashtra and India. We focus on delivering dependable automation solutions with professional installation and technical support.
Why Choose Roll Up Door?
Our Roll Up Door solutions are designed to deliver reliability, efficiency and long-term performance for industrial and commercial applications.
Enhanced Safety
Designed to improve operational safety with reliable automation.
High Performance
Smooth and efficient operation with consistent long-term performance.
Easy Operation
Simple to use with user-friendly controls and automation features.
Low Maintenance
Built using premium quality components for minimum maintenance.
Long Service Life
Engineered for durability even in demanding industrial environments.
Professional Installation
Complete installation and technical support by Aven Automation.
Frequently Asked Questions
Request Product Enquiry
Tell us about your requirement. Our Aven Automation experts will contact you with the best solution for your application.
Technical Specifications
| Door Width | 1000–6000 mm |
| Drive Unit | Electromechanical Geared Motor with Thermal Protection |
| Hood Cover | Optional Powder Coated GI Sheet |
| Stiffeners | Modular Reinforcement Sections |
| Door Height | 1000–6000 mm |
| Side Guides | Self Supporting Powder Coated Aluminium Profiles |
| Door Curtain | Self-Extinguishing High Tensile PVC Fabric |
| Installation | Indoor / Outdoor |
| Power Supply | Single Phase / Three Phase |
| Product Type | High Speed Roll Up Door |
| Roller Shaft | Aluminium Shaft up to 4 m, Mild Steel Shaft Above 4 m |
| Certification | CE Certified, EN 13241-1 Compliant |
| Opening Speed | 0.8–1.5 m/sec (VFD Controlled) |
| Speed Control | Variable Frequency Drive (VFD) |
| Bottom Profile | Powder Coated Aluminium |
| Control System | Advanced Intelligent Control Panel |
| Curtain Colors | Blue,Red,Grey,Orange,Light Blue,Yellow,Custom Colours Available |
| Limit Switches | Triple Limit Switch System |
| Fabric Standard | EN 12641-2 Compliant |
| Wind Resistance | Optional Wind Hook Side Guides |
| Fabric Thickness | 900 GSM / 1700 GSM |
| Door Interlocking | Available |
| Fabric Properties | High Tensile Strength,High Tear Resistance,UV Resistant,Weather Resistant,Mould Resistant,Pest Resistant,Thermal Insulation,Easy to Clean |
| Opening Direction | Vertical |
| Safety Accessories | Safety Photocell,Light Grill Sensor,Optical Wired Safety Edge,Wireless Safety Edge Sensor |
| Emergency Operation | Manual Hand Crank |
| Protection Features | Thermal Protection,Safety Catch Device,Self Lock Function |
| Operating Accessories | Remote Control,Microwave Radar,Magnetic Loop Detector,Pull Cord Switch,Key Switch,Additional Push Button |
| Indicative Accessories | Flashing Light,Flashing Light with Alarm |
| Mechanical Accessories | Motor Cover,Fixed Bollards |
Key Features
Designed for reliable Aven Industrial automationperformance.
Applications
Suitable for multiple industrial environments.
Manufacturing Plants
Warehouses
Distribution Centers
Logistics Hubs
Food Processing Industries
Pharmaceutical Plants
Cold Storage Facilities
Clean Rooms
Packaging Industries
Automobile Manufacturing
Chemical Industries
Textile Industries
Printing Industries
Commercial Buildings
Industrial Workshops
Loading Bays
Airport Cargo Terminals
Retail Distribution Centers
Healthcare Facilities
High Traffic Industrial Entrances
